Beta testing ezColS251107cPeeee.py on LRO-H2 with RSPduo 8/11/2025

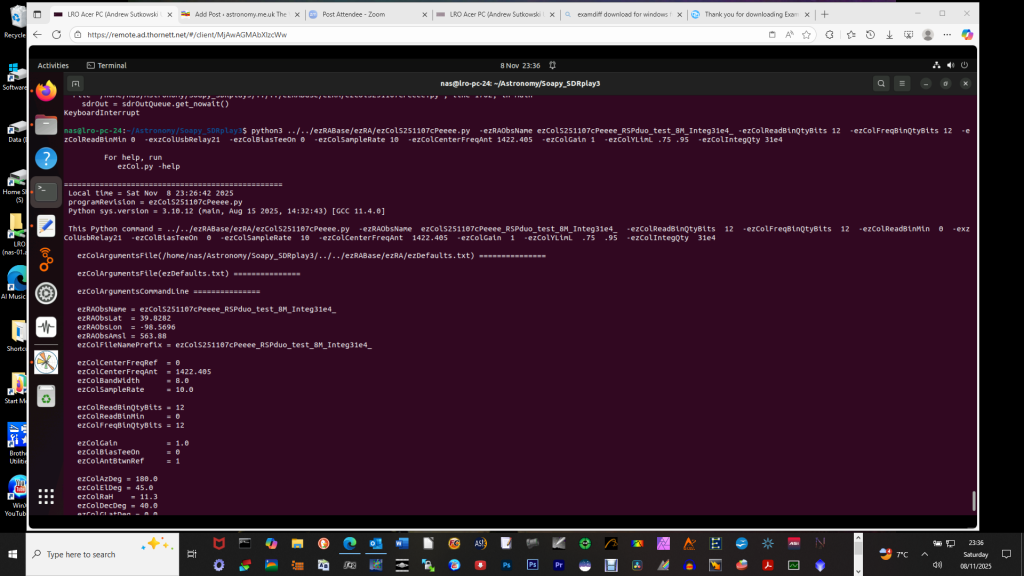

Command line used, after meeting with Ted Cline, where we tested various combinations of parameter settings, in order to find one which worked, is below. Note in particular that the sample rate had to be 10M (10.0 = 10,000,000) when bandwidth was 8M (8.0 = 8,000,000), or, when lower, a symmetrical trace appeared.

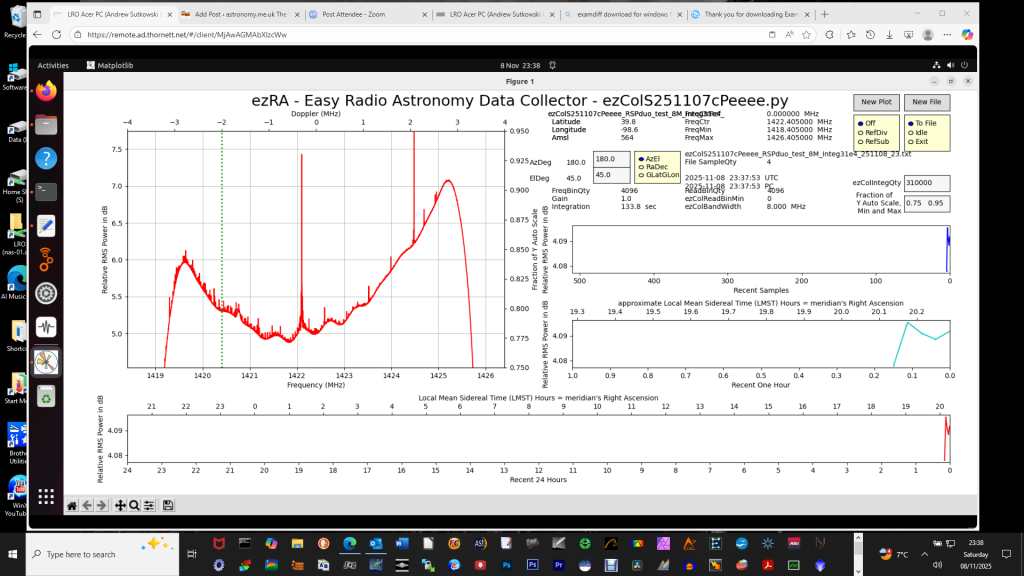

Screenshot taken 8/11/2025 @ 23:40, on LRO-H2 (LRO-24 PC) running the ezRA command line above:

Note there is quite a lot of RFI, but ezRA should be able to deal with this.

I have deliberately placed 1420.405MHz in the command line parameters over to the left (dotted green line), as the intention is to try using a section from the right hand side as reference for calibration.

Next step is to see whether hydrogen becomes more evident over time.
